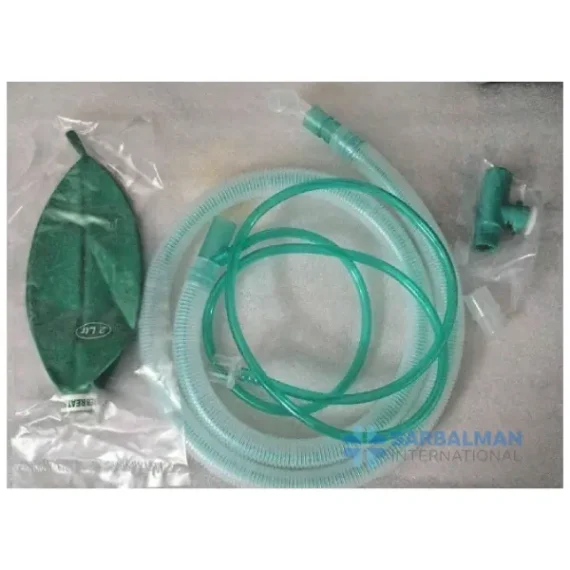

Bain Breathing Circuit
Free!
The Bain breathing circuit is a compact, coaxial Mapleson D system for anesthesia and transport. Fresh gas flows through an inner tube and exhaled gas returns via the outer limb, keeping the setup light, warm, and easy to manage. It enables responsive anesthetic changes and low resistance during controlled ventilation. Standard 15/22 mm connectors fit common masks, airways, and filters for reliable use across OR and transport settings.
Description
A Bain breathing circuit is a lightweight, coaxial version of a Mapleson D anesthesia circuit designed for efficient manual or mechanical ventilation. Fresh gas travels through a narrow inner tube to the patient end, while exhaled gas returns through the outer corrugated limb. This countercurrent layout helps conserve heat and humidity, reduces clutter around the airway, and keeps the circuit easy to handle during induction, positioning, or transport. The circuit connects to standard 15/22 mm fittings and can be used with a reservoir bag and adjustable pressure-limiting valve.
Key features and benefits
• Coaxial design: inner fresh-gas tube inside an outer expiratory limb for a compact, tangle-resistant setup.
• Low resistance: smooth gas flow supports controlled ventilation with minimal work of breathing.
• Quick anesthetic changes: circuit volume and design allow rapid adjustments in inspired concentration.
• Thermal efficiency: countercurrent flow helps warm inspired gases and retain humidity.
• Flexible configurations: available in adult and pediatric lengths, with options for single-use sterile sets or reusable assemblies per facility policy.
• Standard connectivity: 15/22 mm conical connectors interface with masks, supraglottic airways, endotracheal tubes, filters, and anesthesia machines.
Typical applications
• Operating rooms for short to medium procedures, especially when controlled ventilation is planned
• Transport ventilation within the hospital
• Emergency and procedural areas requiring a compact, responsive circuit
• Simulation and training for airway management
How it compares
Compared with conventional Mapleson circuits, the Bain layout is lighter and easier to manage around the head and neck. It performs efficiently for controlled ventilation but requires higher fresh gas flows than circle (rebreathing) systems, which are preferred for low-flow, long-duration cases. Proper integrity checks of the inner tube are important to avoid rebreathing if a disconnection occurs.
Standards and quality notes
Breathing system components typically follow internationally recognized specifications for breathing tubes and conical connectors to support a safe, compatible fit across anesthesia equipment.
